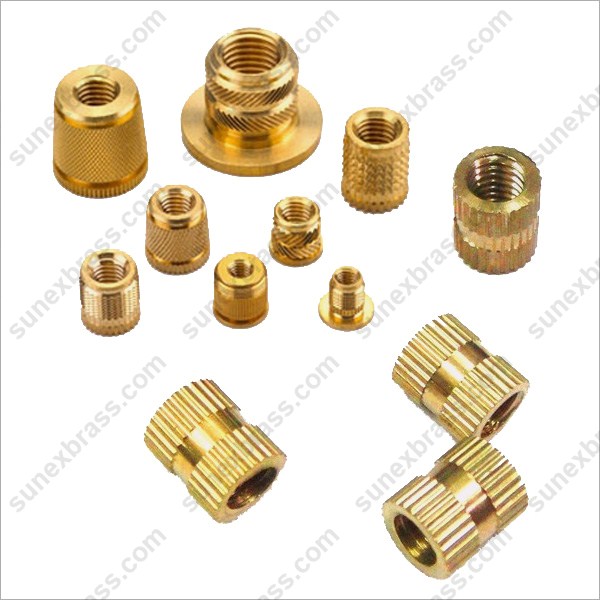

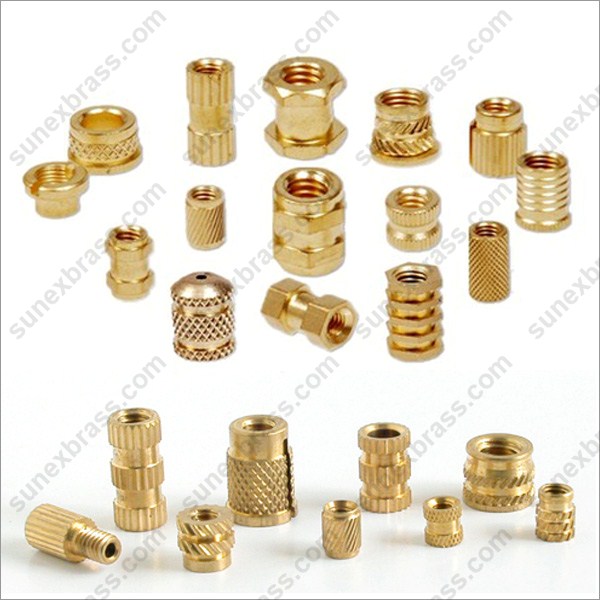

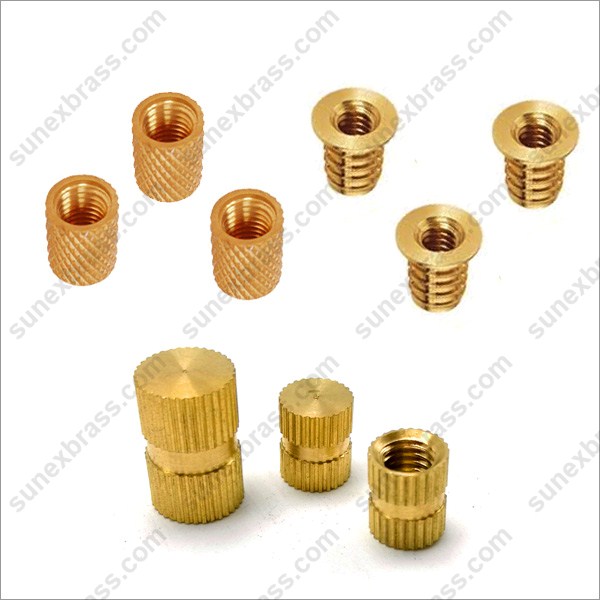

Brass Threaded Moulding Inserts
| Brass Threaded Inserts, Brass Knurled Inserts, Brass Inserts for Plastics, Brass Inserts for Wood and Clipboard, Ultrasonic range of Brass Inserts, Heatbit range of Brass Inserts, Press-in Inserts with and without collars, Moulded-in Inserts |
|
| Special Features of Brass Inserts : | » Threads as per International Go & Not Go Standards. » Deep Groove for maximum Pull Out Resistance. » Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the brass inserts. » Knurling Available: » Diamond » Straight » Unidirectional » Both blind and through brass inserts are available with no minimum Qty. |
| Also Available: | Brass Round Knurled Inserts Brass Hexagonal Inserts Brass Square Inserts |
| Material : | » Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade » Any Special Brass Material Composition as per customers requirement » Brass as per RoHS Directive. |
| Threads : | » ISO Metric (MM Threads) » BA, BSW (Inches), UNC, UNF or » Any as per custom design |
| Length / Size : | Begins from M2 or equivalent threads and up to any size as per custom design or requirement |
| Finish And Coating : | Natural, Nickle Plated, Tin Plated brass inserts or any coating as per customer specification. |
| Any kind of special Brass Threaded Moulding Inserts can be developed and supplied exactly as per customer specification | |
